Heavy Duty Plant Trailers

The Bateson Heavy Duty plant trailers are available in three weight ranges, 2 tonne, 2.6 tonne and the maximum permitted weight 3.5 tonne, they are available in three body lengths 2.5m, 3m and 3.6m (approx. 8’, 10’ and 12’) and four widths approx. 4’ 5’, 5’6” and 6’.

Model 20MD is manufactured with the most compact dimensions possible designed to transport 1500kg mini excavators, allowing a minimum gross train weight.

Larger trailers are available with a full ramp door and an extended drawbar with a high bucket carrier for mini diggers (26MD and 35MD) or with removable ramps and partial floors to carry tracked machines up to 2.9 tonnes.

The heavy duty plant trailers are fitted with a hydraulic tilt and ramp door are designed to provide a low approach angle needed for scissor lifts and similar machines.

Special models are available for attaching fixed plant, generators. pumps, compressors etc. Please let us quote for your requirements and quantities.

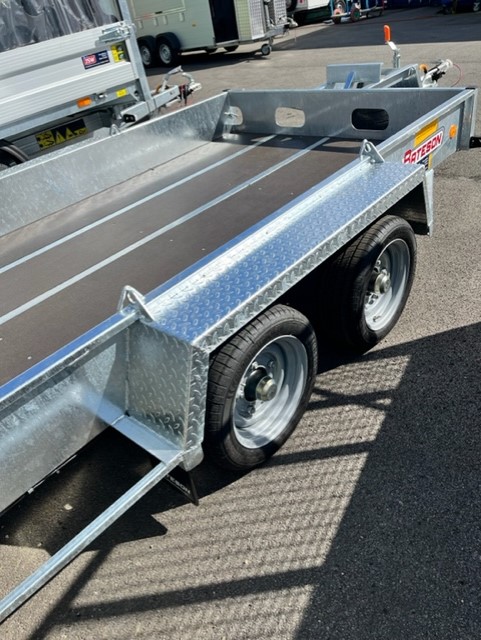

All 26 and 35 trailers have 300mm deep 3mm thick solid steel sides and welded tread plate steel mudguards with load securing points. 18mm phenol coated non slip floor, full road lights and outline markers where required, heavy duty jockey wheel and an interchangeable number plate holder. A spare wheel and carrier is an optional extra on all this range in order to reduce the un laden weight and maximise the payload.

The Bateson Heavy Duty plant trailers are available in three weight ranges, 2 tonne, 2.6 tonne and the maximum permitted weight 3.5 tonne, they are available in three body lengths 2.5m, 3m and 3.6m (approx. 8’, 10’ and 12’) and four widths approx. 4’ 5’, 5’6” and 6’. Model 20MD is manufactured with the most…

Brand

Bateson Trailers

Established in 1934, Bateson Trailers is an established and branded UK trailer manutacturer. They have manufactured many thousands of trailers for varied applications over the years and we have had many specialised commissions for our clients also. They are large enough to manufacture quantities of quality trailers at competitive prices and small enough to modify designs and produce special trailers based on over 100 standard models. JSW Trailers have worked closely with Bateson for well over 35+ years and have an excellent working partnership with them.
