Flatbed Platform Trailers

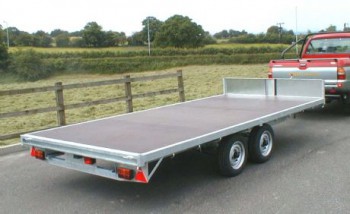

The Bateson Flatbed or Platform trailers, as they are known, are manufactured in three weight ranges, 2 tons, 2.6 tons and 3.5 tons and body lengths from 2.5 metres to 5 metres and up to 7 metres as special orders. Standard widths are 1.5, 1.8 and 2 metres but can be manufactured to 2.1, 2.3 and up to a maximum of 2.5 metres wide. Flatbed trailers at 4.3 metres and longer are available with a sloping beaver tail, or with full hydraulic tilt and ramp door.
The trailer chassis are welded in one piece and hot dipped galvanised and have a phenol coated plywood floor (also known as Boma Decking) with level side rails and sockets for a removable headboard, centre posts and rear corner posts. Standard specification includes full EU lighting including reversing lamps and front markers. Amber side marker lamps are fitted on 5 metre long trailers and larger. Trailers over 2.1 metres wide also have extra rear outline lights. Mudguards, mud flaps, spare wheel and a jockey wheel are also standard.
The PF models are available in all the standard body sizes but with lower chassis and fitted with 195 x 10 wheels and tyres, allowing the lowest possible deck height of 550 mm. They are available with twin axles at 2600kg or three axles (tri axles) at 3500kg, which are similar to their very successful PT hydraulic tilt models.
All models can be fitted with optional equipment, to suit your exact application at a very competitive price.
To ask about a trailer to suit your requirements, please call us on 01609 772449 and we will be happy to assist.
Established in 1934, Bateson Trailers is an established and branded UK trailer manutacturer. They have manufactured many thousands of trailers for varied applications over the years and we have had many specialised commissions for our clients also. They are large enough to manufacture quantities of quality trailers at competitive prices and small enough to modify designs and produce special trailers based on over 100 standard models. JSW Trailers have worked closely with Bateson for well over 35+ years and have an excellent working partnership with them.
